NVIDIA® Jetson Xavier™ NX Edge AI Vision Inference System

Key Features
~AI inference acceleration with NVIDIA® Jetson Xavier™ NX
~Fanless system 187.5(W) x 149.5(D) x 55.25(H) mm
~Wide temperature range from -20°C to 70°C
~Expanded storage by microSD/M.2 PCIe SSD for larger application installation
~Supports 12V to 24V DC-in
~4 PoE ports supporting 60W total power
~Smart PoE software API supports power output control and power loss detection
~Internal USB connector for software license dongle

Introduction

ADLINK's EOS-JNX series of NVIDIA Jetson-based Edge AI vision systems include integrated Nvidia Jetson Xavier NX, 4-channel PoE and digital I/O in a fanless chassis with verified thermal stability.
The EOS-JNX series has a built-in Smart PoE feature to control PoE power remotely to reduce maintenance efforts in challenging environments and provides PoE power loss detection to alert of any unexpected PoE disconnection. The EOS-JNX-I is designed as an AI PoE switch for connecting to IP cameras to enable AI inferencing, and also provides an uplink port to connect to a network video recorder (NVR) for recording video streams, making upgrading existing surveillance systems easy. The EOS-JNX-G is designed for industrial AI machine vision applications, providing a dedicated bandwidth of 1Gb per channel with a GigE camera connection, which is crucial for production line and manufacturing applications.
Moreover, by using the internal USB connector, users can install a software license dongle inside the chassis to avoid loss or theft of the dongle for even greater protection.

Apperance

EOS-JNX-I Front Side

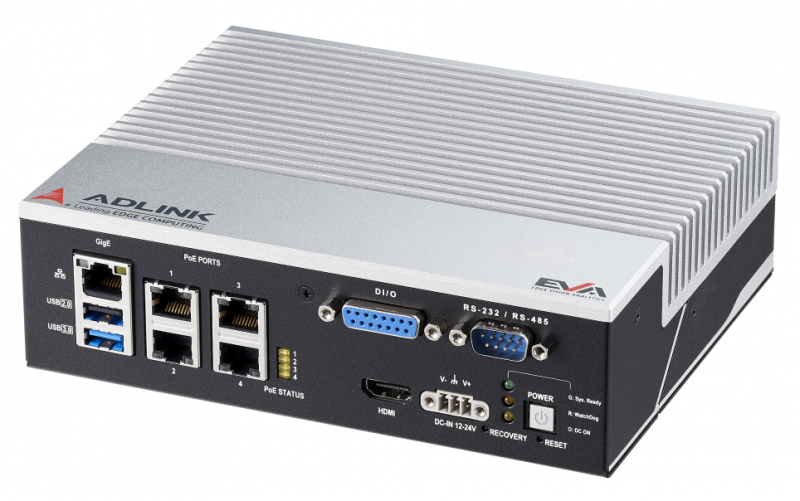

EOS-JNX-G Front Side

EOS-JNX-I / EOS-JNX-G Rear Side
