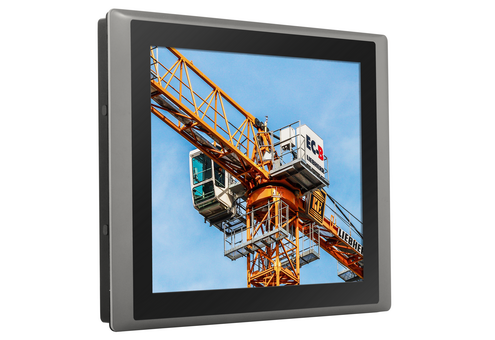

19" TFT-LCD Sunlight Readable Touch Panel PC with Intel® Atom™ E3845 Quad Core Processor
PRODUCTS FEATURES
~19” TFT-LCD with Ultra High Brightness up to 1,600 nits and 1280 x 1024 (SXGA) Resolution
~Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
~Supports 1x DDR3L SO-DIMM Socket, up to 8 GB
~1x 2.5” SATA Drive Bay, 1x CFast Card and 1x SIM Card Socket
~2x GbE LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
~1x Mini-PCIe Expansion Socket for Wireless and I/O Expansion
~Wide Range Operating Temperature -20°C to 70°C
~Designed with Aluminum Die-casting Front Frame
~True Flat IP65 Front Panel Protection
~Supports Panel / VESA / Rack Mounting
~Convertible Display System (CDS) Technology Supported
OVERVIEW
CS-119/P1000 Series is a 19" TFT-LCD sunlight readable touch panel PC offering 1,600 nits ultra high brightness and 1280 x 1024 (SXGA) resolution. The system is equipped with Intel® Atom® E3845 processor and provides extensive I/O including 2x GbE, 4x USB, 2x RS232/422/485, 4x DI/4x DO, 1x VGA and 1x DisplayPort. It also supports 1x Mini-PCIe slot and 1x SIM socket for a variety of wireless connections, such as BT/WiFi and 3G/LTE. In addition, there are 2 types of storage devices including 2.5" SATA HDD and CFast. The accessible design of these storage devices allows quick data access and easy maintenance.
CS-119/P1000 Series supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime.
Furthermore, CS-119/P1000 Series is a truly rugged display system supporting wide range operating temperature (-20°C to 70°C), IP65 dust/water proof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.
PDF or Doc Download
Datasheet_CS_119_P1001_Series.pdf |
