Power-efficient & Compact (DC Series)

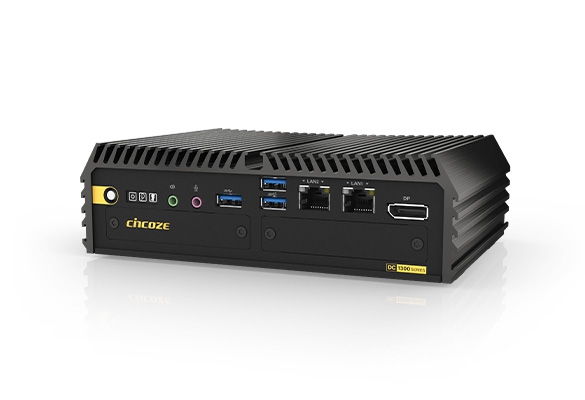

DC-1300
Intel® Alder Lake-N Processor Entry Performance and Compact Rugged Embedded Computer
PRODUCTS FEATURES
~Onboard Intel® Alder Lake-N Processor N97 and Core™ i3-N305 Processor
~1 x DDR5 SO-DIMM Sockets, Supports up to 4800MHz 16GB Memory
~1x M.2 Key B Type 3052/3042 Socket for 5G/GNSS Module Expansion
~1x M.2 key B Type 2242 Socket for I/O Module Expansion
~CMI Technology for Optional I/O Module Expansions
~CFM Technology for Power Ignition Sensing Function
~Safety Standard: UL, cUL, CB, IEC, EN 62368-1
OVERVIEW
The DC-1300 is the entry-level option in the DIAMOND product line specially designed for basic industrial applications. It supports an Intel® Core™ i3 or N97 (Alder Lake-N) processor and maximum expansion flexibility in a compact design, providing a robust and reliable solution for space-constrained industrial automation applications.
4.5X performance
The Intel® Core™ i3-N305 processor (Alder Lake-N) option boasts 4.5 times the computing performance of the previous generation model, and features a DDR5 memory slot and multiple storage options (2.5" HDD/SSD, Half-Slim SSD, M.2 SSD, etc.) to flexibly meet various application needs.
Compact design for flexible installation
The compact size of only 185 x 131 x 56.5 mm is suitable for space-constrained installs and it supports various installation methods, including wall mount, side mount and DIN-Rail.
Complete wireless solution
A full range of wireless transmission options, including GSM, GNSS and Wi-Fi, are supported through the built-in SIM card slot, M.2 Key B slot, or M.2 Key E slot (using an adapter to convert from M.2 Key B).
Rich expandability
The new stackable expansion box (SEB) adds support for more I/O, CANbus, and Fieldbus modules via the DC-1300's dual M.2 B Key slots, while CMI/CFM technology enables extra I/O ( COM, DIO, display), and IGN functions.
International certification
Industrial-grade protection supports wide temperatures (-40 to 70°C) and wide voltages (9-48 VDC), and passes the EMC standard for industrial environments (IEC 61000-6-2/61000-6-4). US military standard (MIL-STD-810H) ensure reliable operation across various application scenarios.
